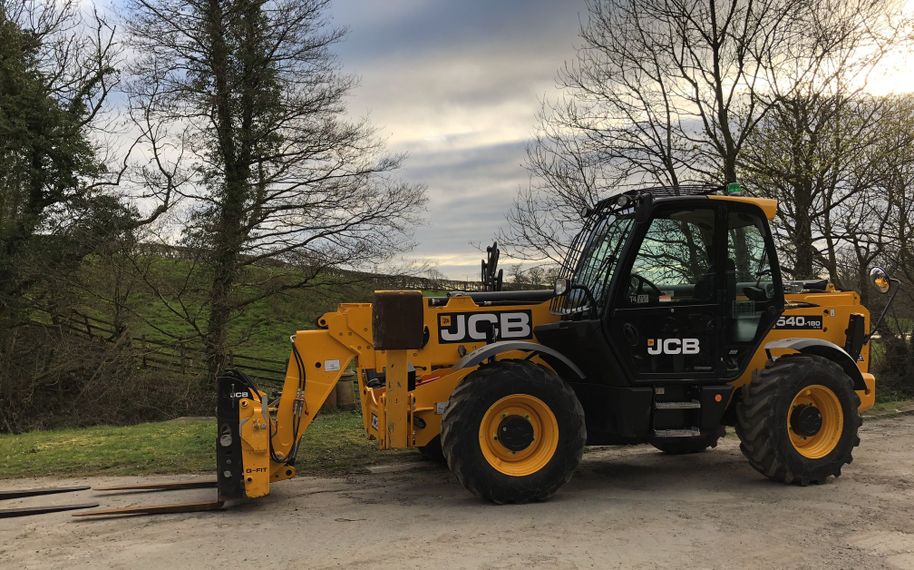

JCB 540/180


The 540-180 Loadall is the latest addition to JCB’s popular HiViz range of telehandlers, boasting a lift height of 17.5m and a maximum forward reach of 13.5m. That’s a 5% increase in working height over the current 540-170 with a 2,500kg load at full height, plus a 10% increase in forward reach. At just 11,330kg however the new model is 7% lighter than its stablemate, thanks to a strengthened four-stage, chain-driven boom and improved chassis construction.



Manufacturers Technical Data Sheet

Overall Height

2590 mm

Overall  Width

2350 mm

Overall Length

6270 mm

Machine Weight

11,380 kg

Fuel Capacity

 Litres

Maximum Lift Height

17,510 mm

Maximum Lift Capacity @ Full Height

2500 kg (4000kg @ 5000mm)

Maximum Reach Forward

13,340 mm

Maximum Lift Capacity @ Full Reach

550 kg

Stabilisation Legs

Yes
