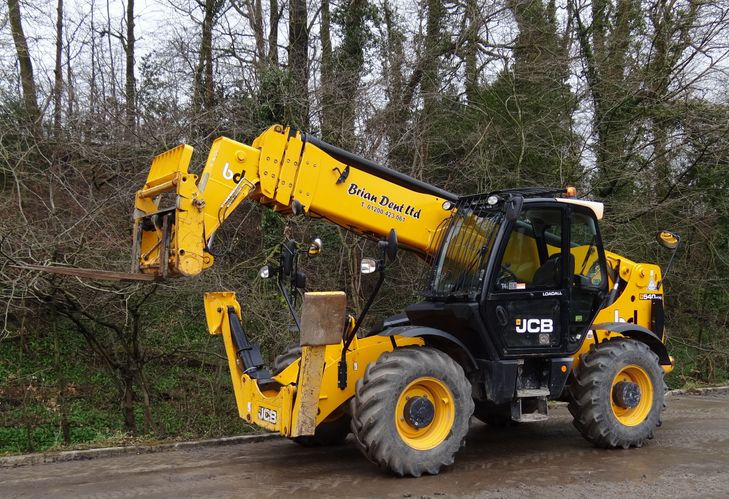

JCB 540/170

JCB have been evolving the telehandler concept since 1977. The latest 540-170 Loadall is an embodiment of that process, developed to meet the needs of rental companies and contractors alike, and able to cope with the unique demands of any site. A huge reach and compact dimensions, as well as unrivalled manoeuvrability, build quality and operator comfort are just the beginning.
As with all JCB Construction telescopic handlers, the 540-170 has unrivalled productivity, efficiency, safety and serviceability as standard too.

Road Legal On Request

Attachments Available:
Man Basket
Hook Attachment
Truss Handler

Manufacturers Technical Data Sheet

Overall Height

2690 mm

Overall  Width

2440 mm

Overall Length

6360 mm

Machine Weight

12,060 kg

Fuel Capacity

146 Litres

Maximum Lift Height

16,700 mm

Maximum Lift Capacity @ Full Height

2500 kg (4000kg @ 10,500mm)

Maximum Reach Forward

12,500 mm

Maximum Lift Capacity @ Full Reach

600 kg

Stabilisation Legs
